Micro-Access/MST Introducer Kits & Sets
Atraumatic Access with Consistent Performance and Protection
For smaller access sites and inury prevention.
Kit includes an introducer/dilatory assembly with standard kit components plus safety accessories.
Description

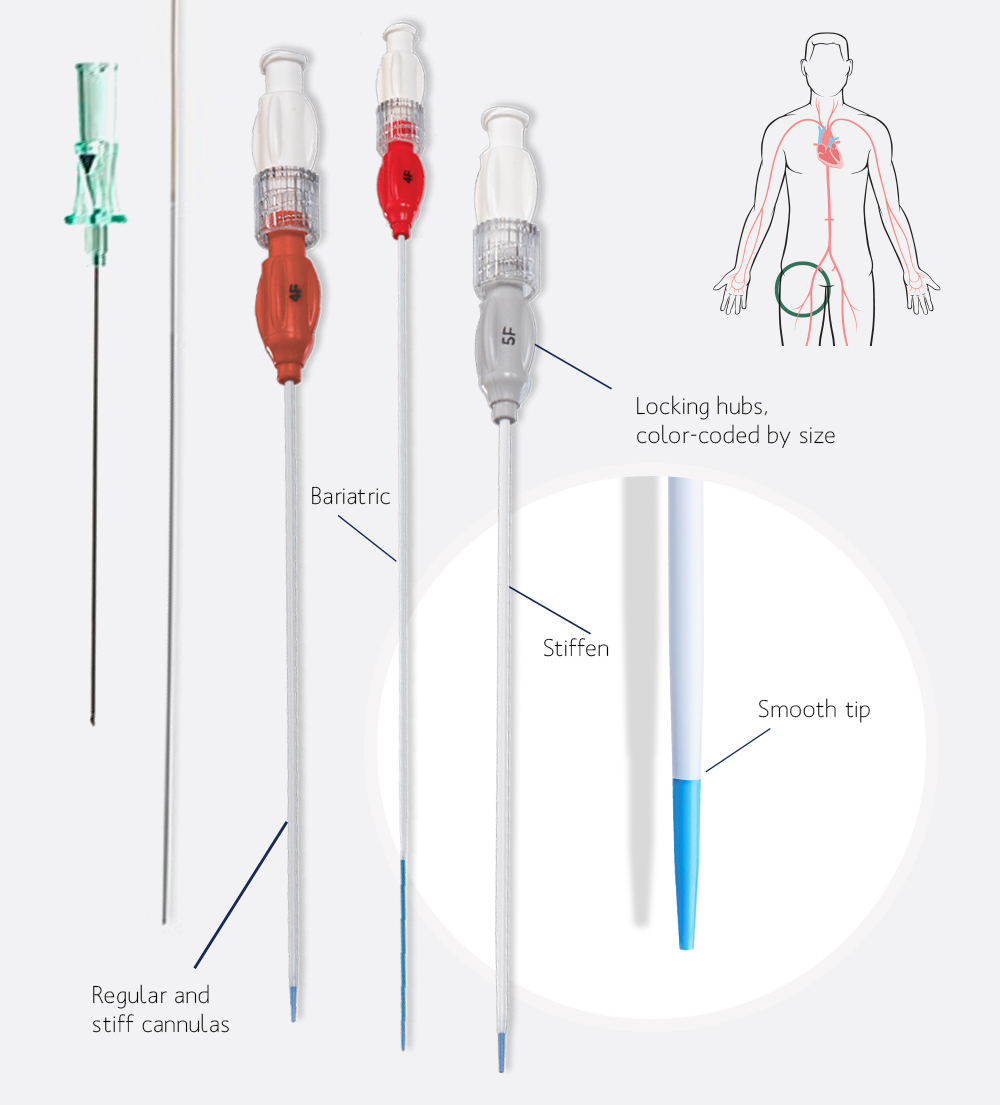

Atraumatic Access for Smaller Sites
- Smaller and half-sizes for smaller access sites and a precise introduction
- Ergonomic design with smooth, sheath-to dilator transitions facilitates ease of insertion and minimizes tissue trauma
- Silicone coating further aids in reducing trauma
Consistent Performance
- Easy-to-thread, locking hub prevents dilator back out
- Funnel shaped lead-in eases wire and catheter insertion
- Ergonomic wings aid in a successful separation of the tearaway
- Smooth peel helps maintain device placement
Protection
- Safety guidewire introducer needle and a #11 safety scalpel help minimize the risk of accidental patient and provider injuries
Ordering Information

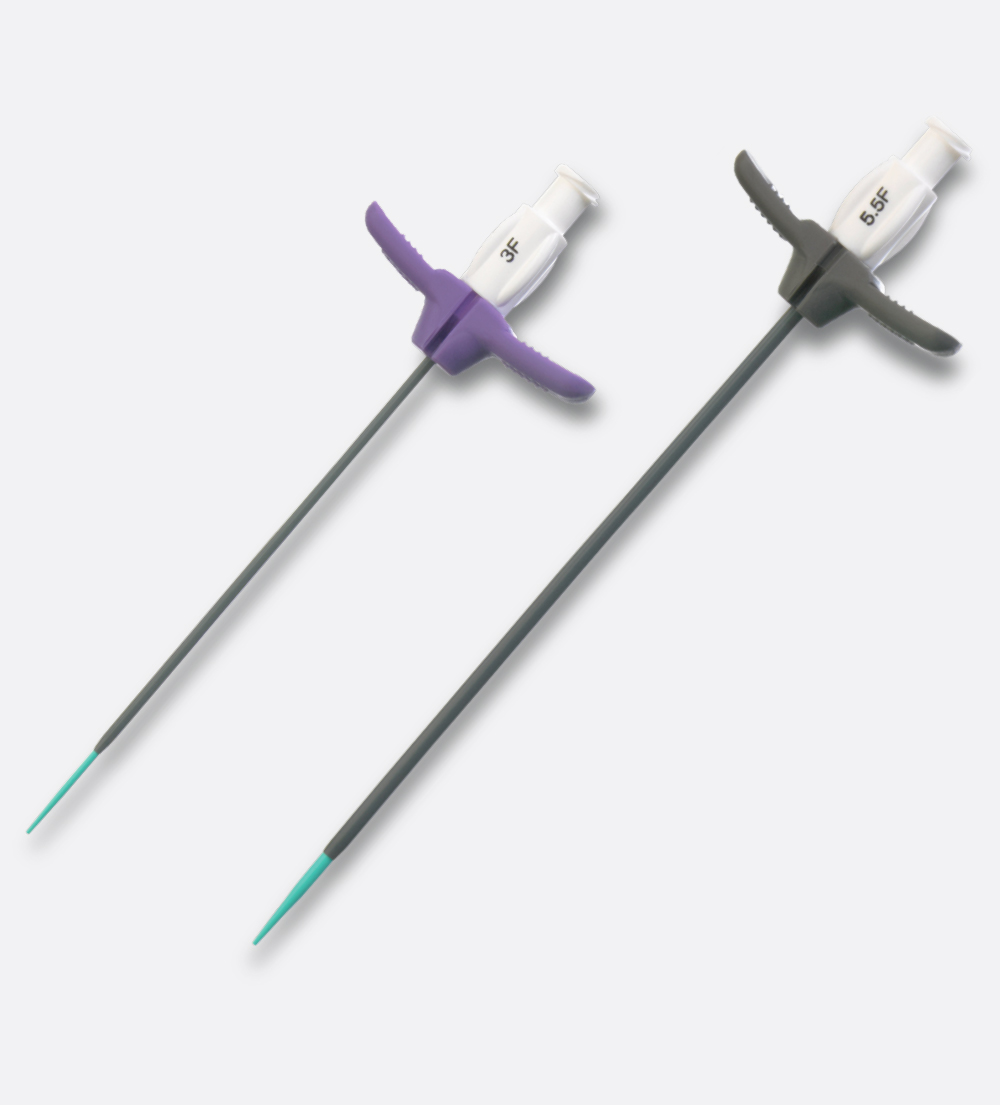

Micro-Access Tearaway Introducer Kits

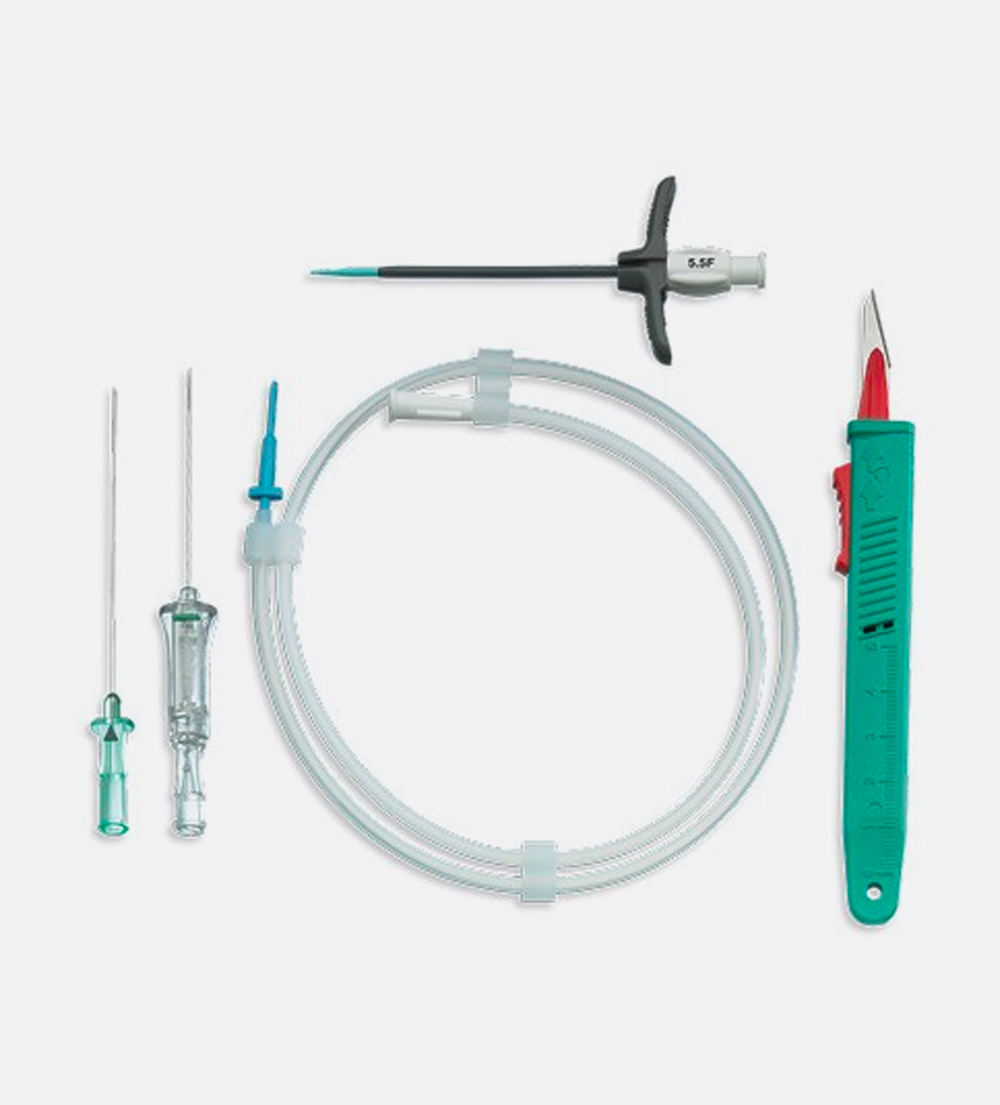

Kit contents: PTFE tearaway introducer set, a nitinol mandrel guidewire, a safety guidewire introducer needle, a #11 safety scalpel, and a standard guidewire introducer needle
5cm introducer kits contain a .018“x 40cm marked nitinol mandrel wire with a stainless steel soft tip
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| KIT-010-00 | 3F x 5cm | 21G x5cm safety | 5 |
| KIT-010-01 | 3.5F x 5cm | 21G x5cm safety | 5 |
| KIT-010-02 | 4F x 5cm | 21G x5cm safety | 5 |
| KIT-010-03 | 4.5F x 5cm | 21G x5cm safety | 5 |
| KIT-010-04 | 5F x 5cm | 21G x5cm safety | 5 |
| KIT-010-05 | 5.5F x 5cm | 21G x5cm safety | 5 |
7cm introducer kits contain a .018“x 40cm nitinol mandrel wire witha stainless steel soft tip
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| KIT-010-37 | 6.5F x 7cm | 21G x75cm safety | 5 |
10cm introducer kits contain a .018“x 65cm marked nitinol mandrel wire with a stainless steel soft tip
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| KIT-010-12 | 4F x 10cm | 21G x7cm safety | 5 |
| KIT-010-14 | 5F x 10cm | 21G x7cm safety | 5 |
| KIT-010-15 | 5.5F x 10cm | 21G x7cm safety | 5 |
| KIT-010-17 | 7F x 10cm | 21G x7cm safety | 5 |
Micro-Access Tearaway Introducer Sets
Set contents: PTFE sheath and dilator only
5cm introducer sets
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| INT-106-00 | 3F x 5cm | .018″ | 10 |
| INT-106-01 | 3.5F x 5cm | .018″ | 10 |
| INT-106-02 | 4F x 5cm | .018″ | 10 |
| INT-106-03 | 4.5F x 5cm | .018″ | 10 |
| INT-106-04 | 5F x 5cm | .018″ | 10 |
| INT-106-05 | 5.5F x 5cm | .018″ | 10 |
| INT-106-06 | 6F x 5cm | .018″ | 10 |
7cm introducer sets
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| INT-107-30 | 3F x 7cm | .018″ | 10 |
| INT-107-40 | 4F x 7cm | .018″ | 10 |
| INT-107-50 | 5F x 7cm | .018″ | 10 |
| INT-107-60 | 6F x 7cm | .018″ | 10 |
10cm introducer sets
| Catalog No. | Size | Needle | Box Quantity |
|---|---|---|---|
| INT-106-10 | 3F x 10cm | .018″ | 10 |
| INT-106-11 | 3.5F x 10cm | .018″ | 10 |
| INT-106-12 | 4F x 10cm | .018″ | 10 |
| INT-106-13 | 4.5F x 10cm | .018″ | 10 |
| INT-106-14 | 5F x 10cm | .018″ | 10 |
| INT-106-15 | 5.5F x 10cm | .018″ | 10 |
| INT-106-16 | 6F x 10cm | .018″ | 10 |
| INT-106-20 | 6.5F x 10cm | .018″ | 10 |
| INT-106-17 | 7F x 10cm | .018″ | 10 |
Note: For 3cm tearaway sheaths, see MicroSlide® product line
