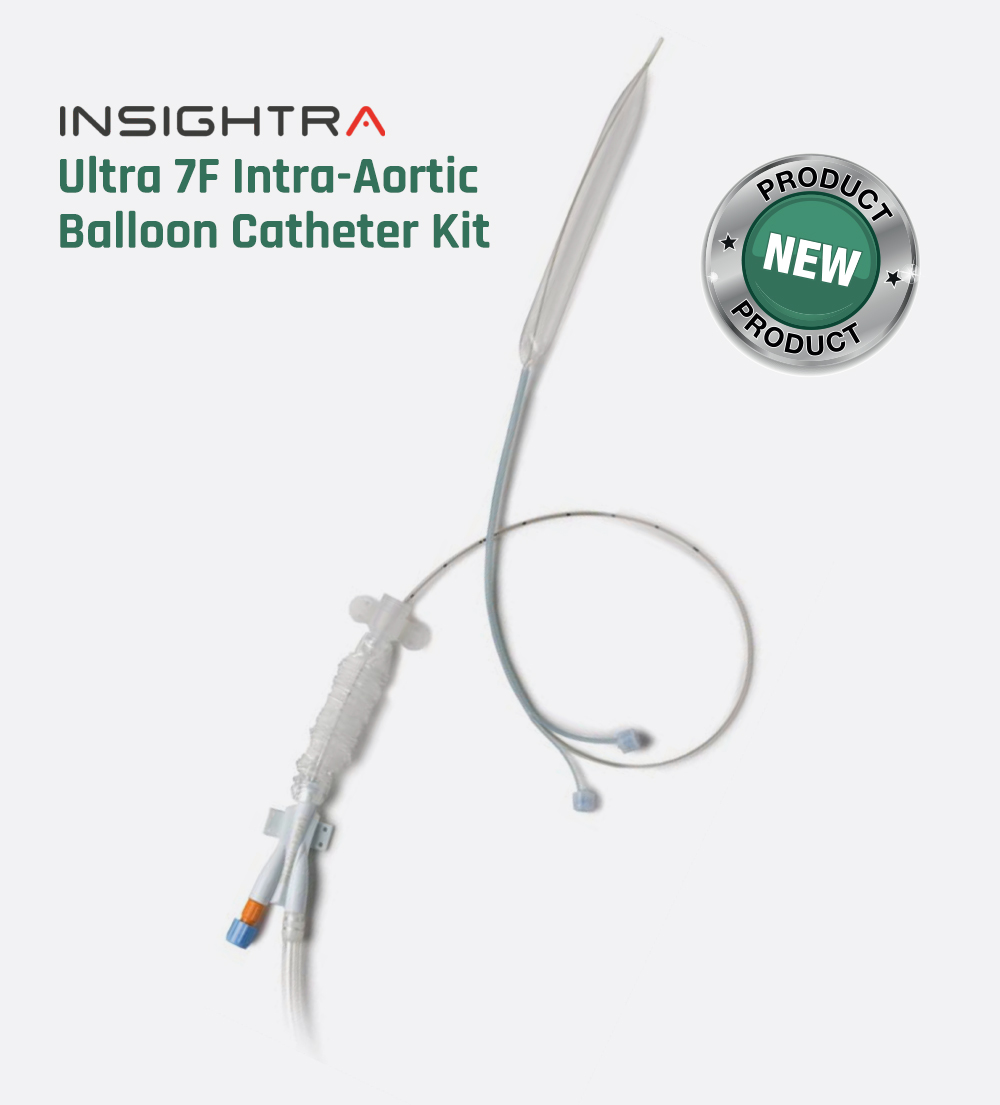

Insightra Ultra 7F Intra-Aortic Balloon Catheter Kit
Precision Access for Enhanced Cardiac Care
Designed for reliable performance and seamless integration with intra-aortic balloon pumps.
With a strong, thin-walled catheter and full-size central lumen, this catheter ensures efficient gas shuttle and rapid response times.
Description

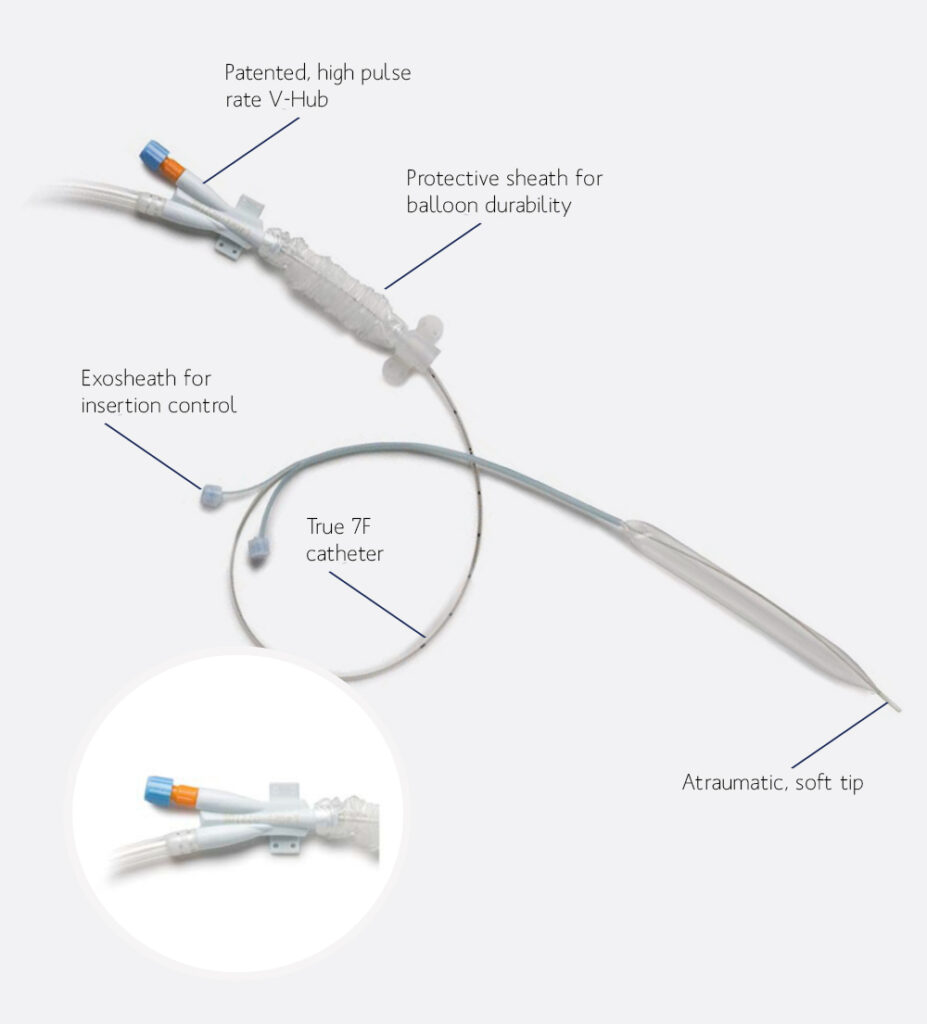

Improved Patient Care
Better distal blood flow
- Achieves 8F performance in a 7F catheter, reducing cross-sectional area by 23% for improved distal blood flow
Rapid response times
- Strong polyurethane balloon and patented V-Hub technology enhance gas flow rates and clinical performance
Trusted Performance
50,000-cycle test
- Each balloon undergoes rigorous testing, including a 50,000-cycle inflation test, ensuring reliability and quality
- Certified for use with DataScope® and Arrow® Intra-Aortic Balloon Pumps, providing flexibility and ease of use
Pump Compatibility
- Compatible with both older and latest pumping systems, eliminating the need for hardware upgrades and extra balloon models
- Supports a wide range of patient heights and clinical scenarios with balloon sizes from 20cc to 40cc
Ordering Information
| Catalog No. | Balloon Size | Volumetric Capacity | Guideline Patient Height | Total Balloon Length | Balloon Outer Diameter | Catheter Diameter | Compatible Guidewire | Central Lumen Diameter | Effective Length | Units /Box |
|---|---|---|---|---|---|---|---|---|---|---|
| IMU7F-40 | 7F L | 40cc | 165cm or Over | 255mm | 14.5mm | 7F | 0.025 inch (0.635mm) | 0.028 inch (0.715mm) | 700mm | 1 |
| IMU7F-35 | 7F M | 35cc | 165 – 155cm | 225mm | 14.5mm | 7F | 0.025 inch (0.635mm) | 0.028 inch (0.715mm) | 700mm | 1 |
| IMU7F-30 | 7F MS | 30cc | 155 – 145cm | 195mm | 14.5mm | 7F | 0.025 inch (0.635mm) | 0.028 inch (0.715mm) | 700mm | 1 |
Kit Contents
| Main Tray | Accessories / Fittings |
|---|---|
| Balloon catheter with 60cc syringe, one-way valve | 0.025 inch x 150cm Guidewire |
| 0.035 inch x 50cm Guidewire | |
| 18G Insertion needle | |
| 7F Sheath and dilator | |
| Pressure monitoring tubing: 15cm and 90cm |
