Tearaway Introducer Kits & Sets
Atraumatic Access with Maximum Drainage.
Designed for atraumatic access in a range of procedural applications.
Introducer sheaths with and without an integrated, low-insertion force hemostasis valve.
Description

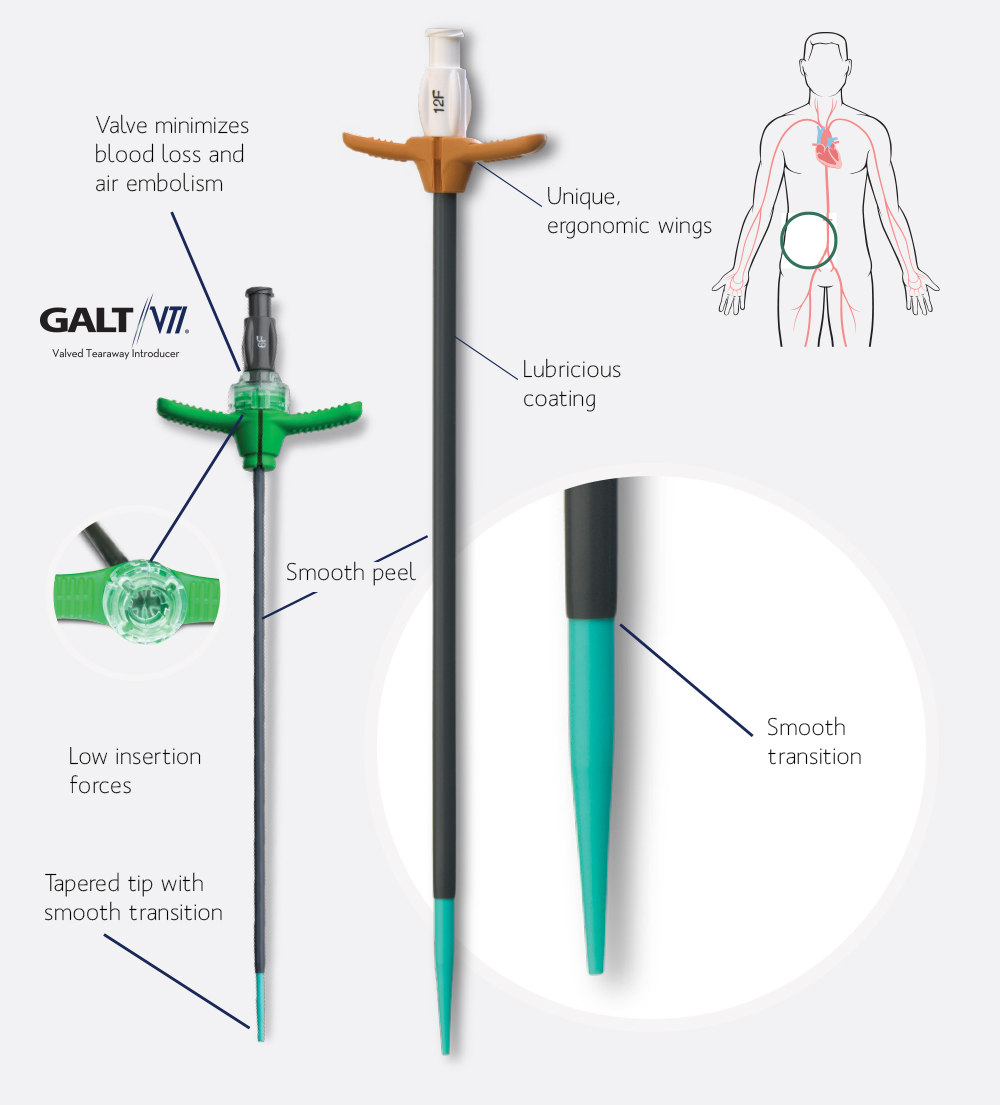

Atraumatic Access
- Ergonomic design with smooth, sheath-to-dilator transitions facilitate ease of insertion and minimize tissue trauma
- Silicone coating further aids in reducing trauma at the insertion site
Consistent Performance
- Easy-to-thread, locking hub prevents dilator back out
- Funnel-shaped lead-in eases wire and catheter insertion
- Ergonomic wings aid in a successful separation of the tearaway
- Smooth peel helps maintain device placement
Ordering Information
Tearaway Introducer Sets
Set contents: PTFE sheath and dilator only
| Catalog No. | Sheath Size | Accepts Guidewire Diameter |
Box Quantity | |
|---|---|---|---|---|
| INT-105-02 | 4F | 14cm | 0.28″ | 10 |
| INT-105-04 | 5F | 14cm | 0.38″ | 10 |
| INT-105-06 | 6F | 14cm | 0.38″ | 10 |
| INT-105-07 | 7F | 14cm | 0.38″ | 10 |
| INT-105-08 | 8F | 14cm | 0.38″ | 10 |
| INT-105-09 | 9F | 14cm | 0.38″ | 10 |
| INT-105-11 | 10F | 14cm | 0.38″ | 10 |
| INT-105-13 | 11F | 14cm | 0.38″ | 10 |
| INT-105-14 | 12F | 14cm | 0.38″ | 10 |
| INT-105-16 | 13F | 14cm | 0.38″ | 10 |
| INT-105-17 | 14F | 14cm | 0.38″ | 10 |
| INT-105-18 | 15F | 14cm | 0.38″ | 10 |
| INT-105-19 | 16F | 14cm | 0.38″ | 10 |
Galt VTI Valved Tearaway Introducer Sets
| Catalog No. | Sheath Size | Accepts Guidewire Diameter |
Box Quantity | |
|---|---|---|---|---|
| VTI-007-05 | 5F | 13cm | 0.38″ | 10 |
| VTI-007-06 | 6F | 13cm | 0.38″ | 10 |
| VTI-007-07 | 7F | 13cm | 0.38″ | 10 |
| VTI-007-08 | 8F | 13cm | 0.38″ | 10 |
| VTI-007-09 | 9F | 13cm | 0.38″ | 10 |
| VTI-007-10 | 10F | 13cm | 0.38″ | 10 |
| VTI-007-11 | 11F | 13cm | 0.38″ | 10 |
| VTI-007-12 | 12F | 13cm | 0.38″ | 10 |
| VTI-007-13 | 13F | 13cm | 0.38″ | 10 |
| VTI-007-14 | 14F | 13cm | 0.38″ | 10 |
| VTI-007-15 | 15F | 13cm | 0.38″ | 10 |
| VTI-007-16 | 16F | 13cm | 0.38″ | 10 |
Long Length Tearaway Introducer Sets
| Catalog No. | Sheath Size | Accepts Guidewire Diameter |
Box Quantity | |
|---|---|---|---|---|
| INT-106-31 | 5F | 30cm | 0.18″ | 10 |
| INT-106-09 | 6F | 30cm | 0.18″ | 10 |
| INT-106-07 | 7F | 30cm | 0.18″ | 10 |
| INT-106-33 | 9F | 50cm | 0.18″ | 10 |
| INT-106-37 | 7F | 50cm | 0.18″ | 10 |
| INT-105-21 | 5F | 30cm | 0.38″ | 10 |
| INT-105-25 | 7F | 30cm | 0.38″ | 10 |
| INT-105-29 | 8F | 30cm | 0.38″ | 10 |
| INT-105-33 | 19F | 30cm | 0.38″ | 10 |
| INT-105-34 | 9F | 44cm | 0.38″ | 10 |
| INT-105-37 | 10F | 30cm | 0.38″ | 10 |
| INT-105-41 | 11F | 30cm | 0.38″ | 10 |
| INT-105-45 | 12F | 30cm | 0.38″ | 10 |
| INT-105-53 | 16F | 30cm | 0.38″ | 10 |
| INT-105-57 | 6F | 30cm | 0.38″ | 10 |
5cm, 7cm, and 10cm Micro-Access Introducer Sets also available
Tearaway Introducer Kits
Kit contents: tearaway introducer set, .038″ x 50cm flex tip/3mm “J”-Straight Stainless guidewire, introducer needle, and a 10cc Luer slip syringe
| Catalog No. | Sheath Size | Introducer Needle | Box Quantity | |
|---|---|---|---|---|
| KIT-009-03 | 6F | 14cm | 21G x 7cm | 5 |
| KIT-009-04 | 7F | 14cm | 21G x 7cm | 5 |
| KIT-009-05 | 8F | 14cm | 21G x 7cm | 5 |
| KIT-009-07 | 9F | 14cm | 21G x 7cm | 5 |
| KIT-009-11 | 11F | 14cm | 21G x 7cm | 5 |
5cm, 7cm, and 10cm Micro-Access Introducer Sets also available
Additional Information
- For 5, 7, and 10cm tearaway introducers, please visit the Micro-Access/MST product page.
- For 3 and 7cm sizes for smaller patients, learn more about MicroSlide on the Pediatric Access product page.
- Kits and Sets (set = sheath/dilator assembly only)
